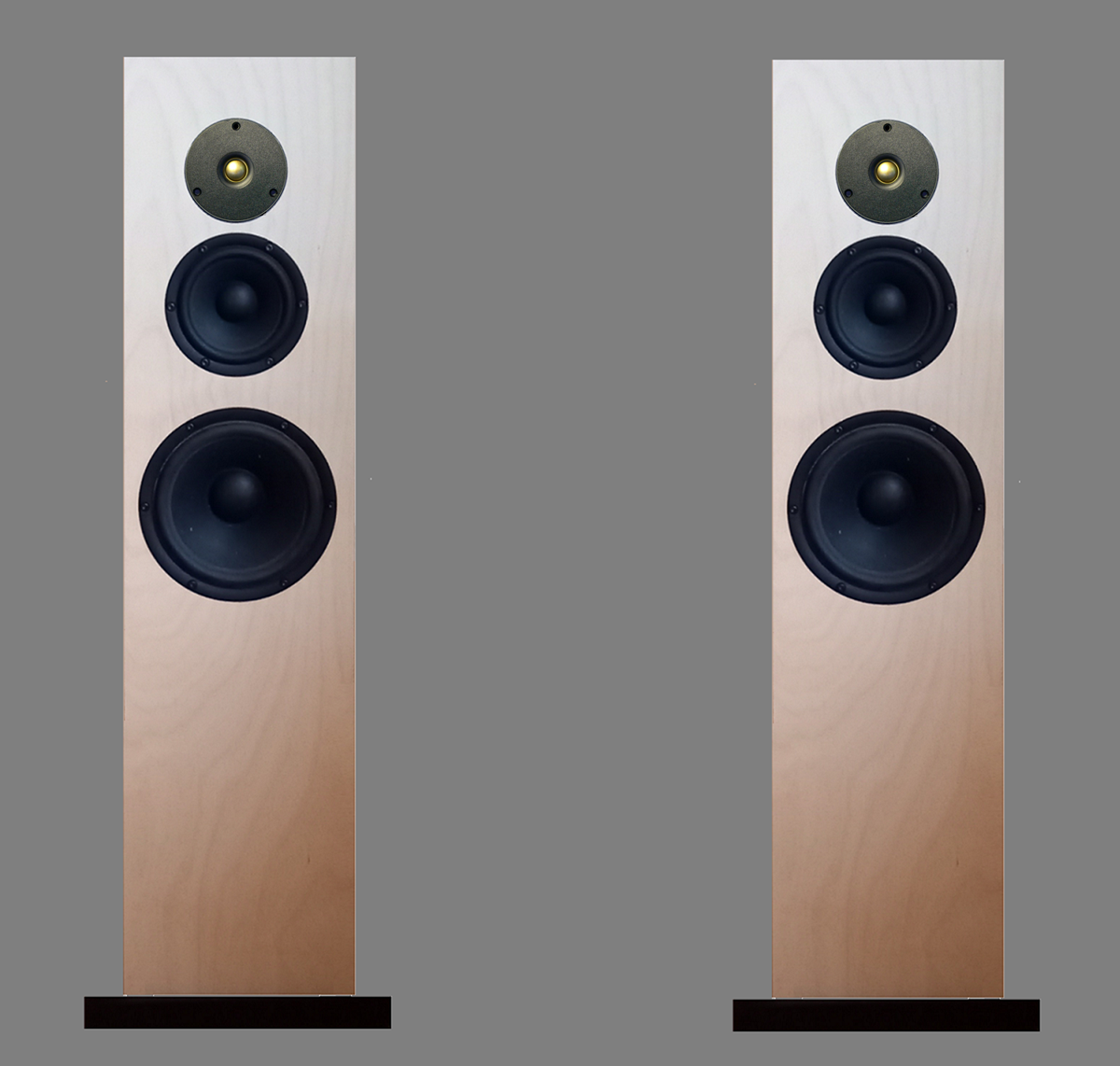

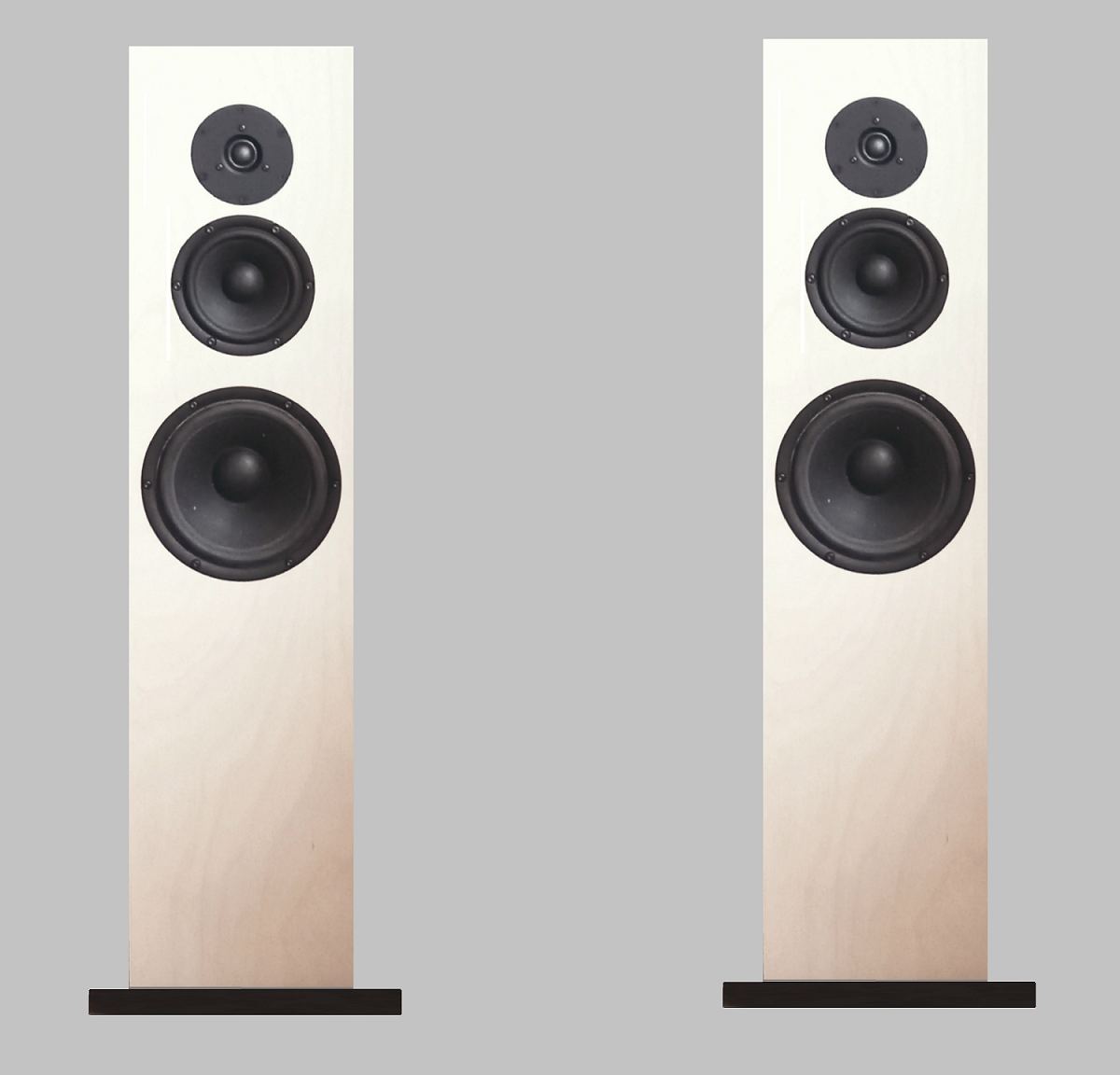

klångedang k2.2 (dingle 2)

Dingle 2 is a further development from the original dingle. Dingle 2 is less sensitive
for properties of e.g. the floor. The result is a more stable performance.

Our floor model Dingle sounds bigger than it looks. Standard version is in high quality
oiled birch plywood,or "laid back black", and with a stable NC-milled aluminum foot.

Like our other speakers, Dingle has a separate crossover of a type we call "direct
synchronous serial filter", which provides extremely good timing, and true instrument sound.
Each crossover is measured and documented.

The crossover filter is easily accessible in a compartment on the back. Which makes it easy to
disconnect for eg active drive. An active beta version of Exact.design is currently available.

Even though dingle is ready for SPACE OPTIMISATION, we strive for a good function in
a normal living room, relatively close to the back wall and without any room adaptation.

klångedang dingle 2 active only version

With the development of version 2, the dingle has become even more ready for active use.
Fundamental improvements have made use of active filters even better, and what we recommend.
With the "active only" version, you don't have to pay for the passive x-overs.
  • Stable plywood cabinet
  • Stable aluminum foot
  • Ready for Active Drive
  • Directly connected synchronous series filter
  • Measured for SPACE OPTIMISATION

Specifications revision 2

Principe 3-way
Frequency range35-30000Hz
Sensitivity88dB / 8 ohm
Minimal impedance5.5 ohm [more info]
Power handling music70 Watt
Height including the foot96cm
Width (cabinet only)22.3cm
Width including the foot30.5cm
Depth including the foot34.5cm
