klångedang jore
The basics
Unlike its predecessor T1, Jore is a complete speaker without a stand.The x-over is mounted in a similar way as for Dingle - on a vibration-isolating suspension
in a compartment on the back of the cabinet. Jore is optimized to give a good bass reproduction relatively close to the wall in an ordinary room
- both with and without room adaptation. There is an option to customize the bass reflex port
on the back for different rooms and locations. Jore can be placed on any stable stand.
The cabinet
The box is hand-built in Sweden, and our plan is to be able to offer cabinets in different classes.Please see the price list.
The X-over

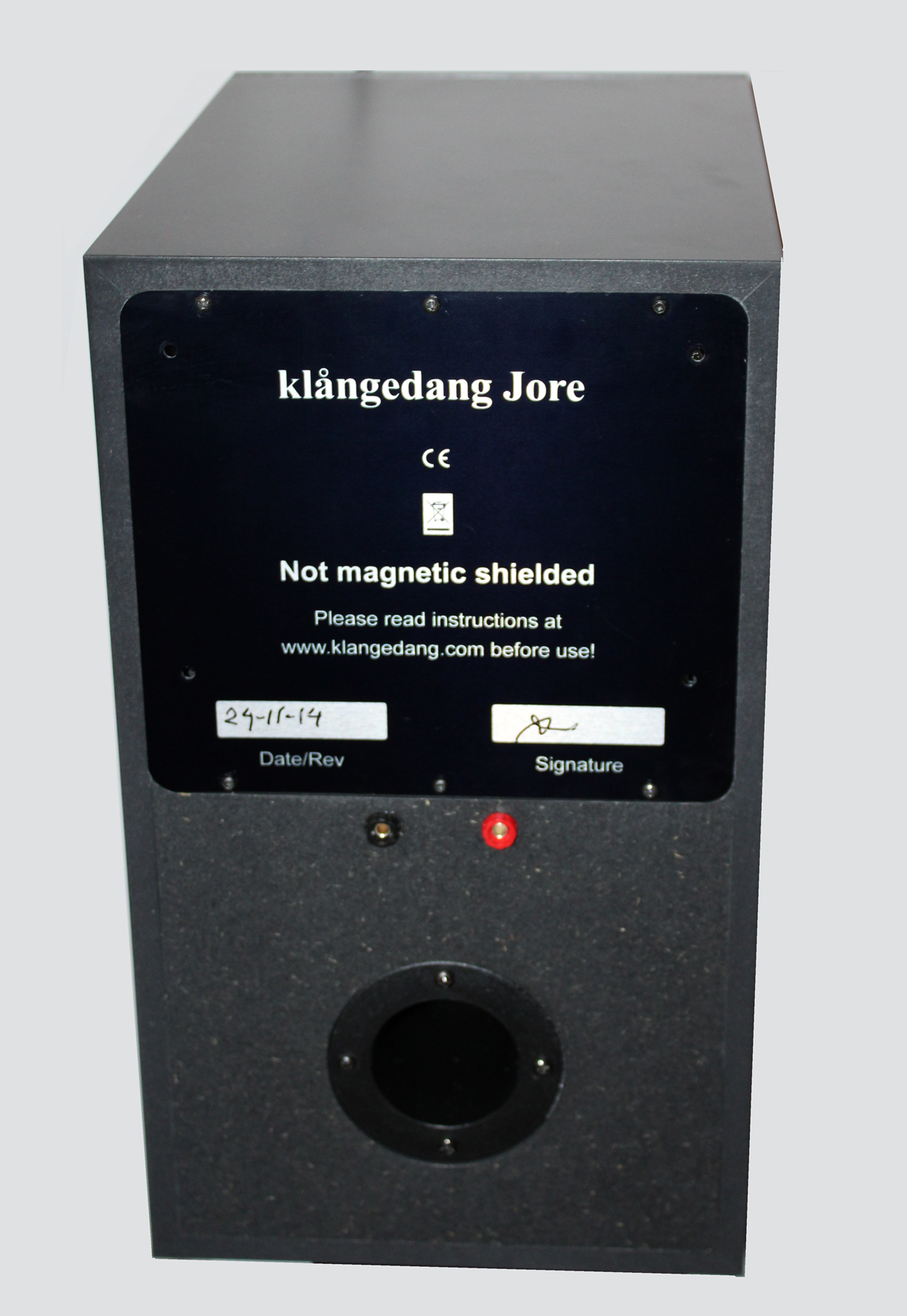

The X-over - the directly connected series filter, is easily accessible in a compartmenton the back. Which makes it easy to disconnect for an upgrade or for active use.
Read more about active use under [technique.]

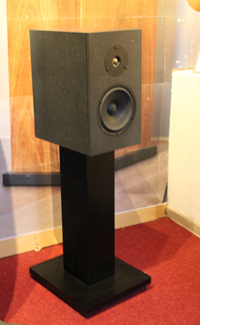

The M stands
If you want to lift the music reproduction to a higher level, we have, despite the fact that Joreworks on "normal" stands, we have made an extremely stable stand. With a milled aluminum foot and
a very strong profile with internal damping. The M stand is relatively expensive. But the music
improves so much that we still want to say that it is cost effective.
- Stable cabinet in birch plywood with pinewood at the back
- Measured for SPACE OPTIMISATION
- Ready for Active use
- Active filters for Exakt.Design
Technical Specifications | |
| Product Name | Jore |
| Product No | K1 |
| Current version | 5.3 |
| Principle | 2-way |
| x-over | directly connected series filter 2nd order |
| Frequency range | 50-25 000 Hz |
| Sensitivity | 89dB / 4 ohms |
| Min impedance | 3.5 ohm |
| Power music | 80 Watt |
| Height | 36.5cm |
| Width | 21cm |
| Depth | 30.6cm |
